Before we begin

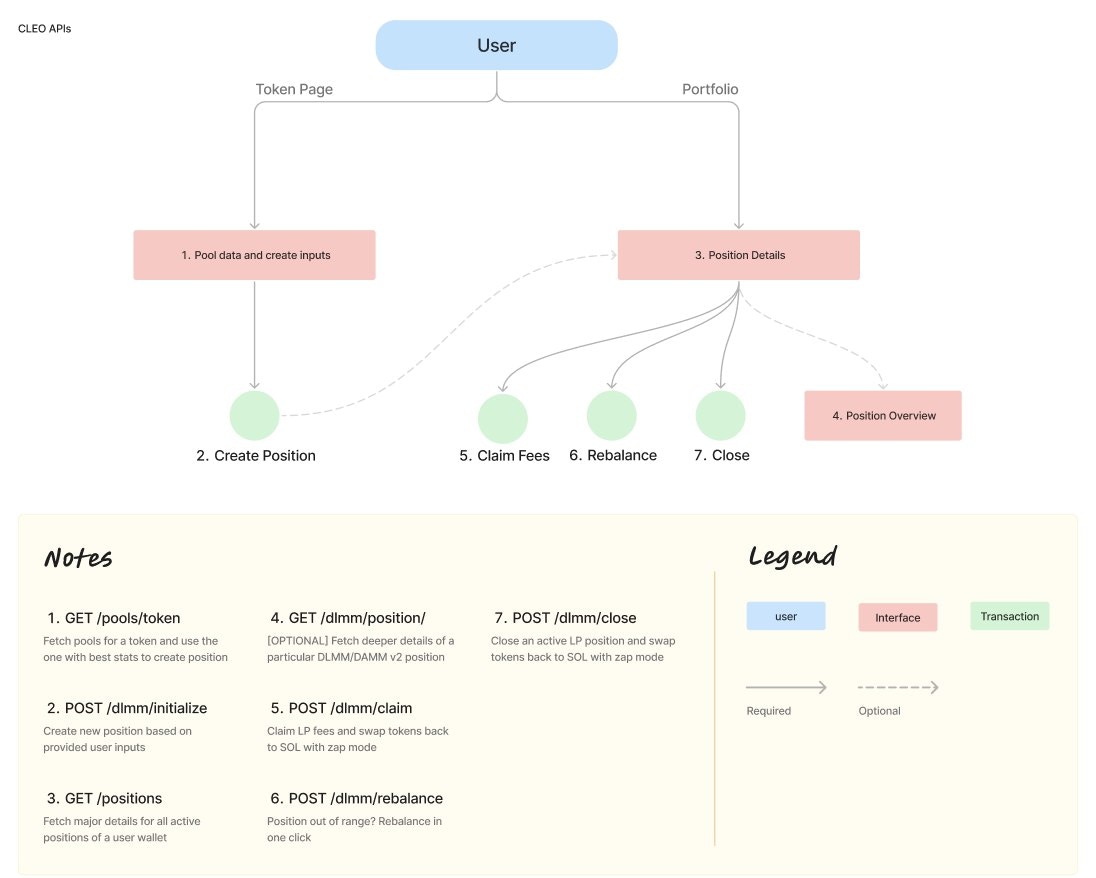

API Workflow

Understand how to integrate LP features into your product using our APIs by following this workflow diagram.

Installation

Install the required dependencies:
npm install @solana/web3.js bs58

Setup

First, set up your environment and API configuration:
Reach out to our team on Discord to receive your API Key
import { Connection, Keypair, VersionedTransaction } from "@solana/web3.js";
import base58 from "bs58";

const API_KEY = "your-cleo-api-key";
const PRIVATE_KEY = "your-private-key-here"; // string
const API_URL = "https://public-api.cleopetra.fun";
const RPC_URL = "your-solana-rpc-url";

const connection = new Connection(RPC_URL);
const keypair = Keypair.fromSecretKey(base58.decode(PRIVATE_KEY));

const sendRequest = async (route: string, params: any) => {
  const response = await fetch(`${API_URL}${route}`, {
    method:
      route.includes("positions") || route.includes("pools") ? "GET" : "POST",
    headers: {
      Authorization: `Bearer ${API_KEY}`,
      Accept: "application/json",
      "Content-Type": "application/json",
    },
    body:
      route.includes("positions") || route.includes("pools")
        ? undefined
        : JSON.stringify(params),
  });

  if (!response.ok) {
    throw new Error(`API Error: ${response.status}`);
  }

  return await response.json();
};

Transaction Sending Helper

Add this helper function to handle transaction signing and sending:
const getRequiredSigners = (txn: VersionedTransaction): string[] => {
  return txn.message.staticAccountKeys
    .filter((_, idx) => txn.message.isAccountSigner(idx))
    .map((pk) => pk.toBase58());
};

const sendTransaction = async (
  base64Txns: string[],
  positions: string[] = [],
  positionNftMintKp?: string
) => {
  const signatures: string[] = [];

  for (const [i, base64Txn] of base64Txns.entries()) {
    try {
      const { blockhash, lastValidBlockHeight } =
        await connection.getLatestBlockhash();

      const transaction = VersionedTransaction.deserialize(
        Buffer.from(base64Txn, "base64")
      );

      transaction.message.recentBlockhash = blockhash;

      const requiredSigners = getRequiredSigners(transaction);
      const signers: Keypair[] = [];

      const addSignerIfNeeded = (kp: Keypair) => {
        const key = kp.publicKey.toBase58();
        if (
          requiredSigners.includes(key) &&
          !signers.some((s) => s.publicKey.equals(kp.publicKey))
        ) {
          signers.push(kp);
        }
      };

      addSignerIfNeeded(keypair);

      if (positions) {
        for (const [idx, position] of positions.entries()) {
          if (!position) continue;
          try {
            const positionKp = Keypair.fromSecretKey(
              Buffer.from(position, "base64")
            );
            addSignerIfNeeded(positionKp);
          } catch (err) {
            console.warn(`Failed to parse position keypair ${idx}:`, err);
          }
        }
      }

      if (positionNftMintKp) {
        try {
          const nftKp = Keypair.fromSecretKey(
            Buffer.from(positionNftMintKp, "base64")
          );
          addSignerIfNeeded(nftKp);
        } catch (err) {
          console.warn("Failed to parse NFT mint keypair:", err);
        }
      }

      const signerKeys = signers.map((s) => s.publicKey.toBase58());
      const missingSigners = requiredSigners.filter(
        (rs) => !signerKeys.includes(rs)
      );

      if (missingSigners.length > 0) {
        console.error(
          `Missing required signers for transaction ${i + 1}:`,
          missingSigners
        );
        continue;
      }

      transaction.sign(signers);
      const signature = await connection.sendTransaction(transaction);

      await connection.confirmTransaction(
        {
          signature,
          blockhash,
          lastValidBlockHeight,
        },
        "confirmed"
      );

      console.log(`Transaction ${i + 1} confirmed:`, signature);
      signatures.push(signature);
    } catch (error) {
      console.error(`Failed to send transaction ${i + 1}:`, error);
    }
  }

  return signatures;
};
For web apps using the Solana wallet adapter, it’s important to sign all transactions at once using the signAllTransactions hook, and then send them on-chain one by one in sequence.
Use transaction sending services like Jito in production.

Step 1: Discover Pools

Find the best liquidity pools for a specific token:
const discoverPools = async () => {
  const tokenMint = "9BB6NFEcjBCtnNLFko2FqVQBq8HHM13kCyYcdQbgpump"; // Fartcoin

  const queryParams = new URLSearchParams({
    token: tokenMint,
    programs: "dlmm,dammv2",
    order_by: "desc",
    sort_by: "volume",
  });

  const pools = await sendRequest(`/pools/token?${queryParams}`, null);
  console.log("Available pools:", pools.slice(0, 3));

  // Choose the top DLMM pool
  const topDlmmPool = pools.find((pool) => pool.type === "Dlmm");
  if (!topDlmmPool) {
    throw new Error("No DLMM pool found for this token");
  }

  console.log("Selected pool:", {
    address: topDlmmPool.address,
    tvl: topDlmmPool.tvl,
    volume24h: topDlmmPool.volume_24h,
    apr: topDlmmPool.apr,
  });

  return topDlmmPool;
};

Step 2: Create DLMM Position

Create a liquidity position in the selected pool:
const createPosition = async (pool: any) => {
  // Calculate price range (5% above and below current price)
  const currentPrice = pool.price;
  const minPrice = currentPrice * 0.95;
  const maxPrice = currentPrice * 1.05;

  const params = {
    user: keypair.publicKey.toString(),
    mode: "zap", // Automatically converts SOL to required tokens
    pool: pool.address,
    strategy: "spot",
    amount_sol: 1.89, // 1.89 SOL
    min_price: minPrice.toString(),
    max_price: maxPrice.toString(),
  };

  console.log("Creating position with params:", params);

  const result = await sendRequest("/dlmm/initialize", params);
  console.log("Position creation result:", result);

  if (result?.transactions) {
    const signatures = await sendTransaction(
      result.transactions,
      result.positions
    );
    console.log("Position created successfully!");
    return signatures[0];
  }

  throw new Error("Failed to create position");
};

Step 3: Fetch User Positions

Retrieve all positions for your wallet:
const fetchPositions = async () => {
  const queryParams = new URLSearchParams({
    user: keypair.publicKey.toString(),
    programs: "dlmm,dammv2",
    limit: "10",
    page: "1",
  });

  const result = await sendRequest(`/positions?${queryParams}`, null);
  console.log(`Found ${result.total} positions:`, result.positions);

  if (result.positions.length === 0) {
    throw new Error("No positions found for this wallet");
  }

  return result.positions;
};

Step 4: Claim LP Fees

Claim accumulated fees from your first position:
const claimFees = async (positions: any[]) => {
  const firstPosition = positions[0];
  console.log("Claiming fees for position:", firstPosition.position_address);
  console.log("Unclaimed fees (USD):", firstPosition.total_unclaimed_fees_usd);

  if (firstPosition.total_unclaimed_fees_usd === 0) {
    console.log("No fees to claim for this position");
    return;
  }

  const params = {
    user: keypair.publicKey.toString(),
    mode: "zap", // Convert claimed tokens to SOL if needed
    position: firstPosition.position_address,
    slippage: 500,
  };

  const result = await sendRequest("/dlmm/claim", params);
  console.log("Claim result:", result);

  if (result?.transactions) {
    const signatures = await sendTransaction(result.transactions);
    console.log("Fees claimed successfully!");
    return signatures;
  }

  throw new Error("Failed to claim fees");
};

Complete Workflow

Put it all together in a complete example:
const main = async () => {
  try {
    console.log("🔍 Step 1: Discovering pools...");
    const selectedPool = await discoverPools();

    console.log("\n💰 Step 2: Creating DLMM position...");
    await createPosition(selectedPool);

    // Wait a moment for the position to be indexed
    console.log("\n⏳ Waiting for position indexing...");
    await new Promise((resolve) => setTimeout(resolve, 5000));

    console.log("\n📊 Step 3: Fetching positions...");
    const positions = await fetchPositions();

    console.log("\n🎯 Step 4: Claiming LP fees...");
    await claimFees(positions);

    console.log("\n✅ Workflow completed successfully!");
  } catch (error) {
    console.error("❌ Workflow failed:", error);
  }
};

main();

Next Steps

API Demo Scaffold

Explore a ready-to-use TypeScript scaffold with Cleopetra API examples and workflow integration.
